Portable outdoor solar power energy storage device 51.2V/15AH (3072Wh)

Highlights:
1.100W lightweight flexible solar power module (applied to top of RV) 300W lightweight flexible solar power roof module (applied to house balcony / roof)
2.200W high-efficiency single crystal solar energy (four-fold integrated laminated band bracket) 300W high-efficiency single crystal solar energy (four-fold integrated laminated band bracket)
3.Outdoor solar energy storage device Solar energy house storage inverter
4.Photovoltaic micro-inverter Photovoltaic inverter Off-grid connection hybrid inverter
5.Wall-mounted device Portable and mobile energy storage device Stackable energy storage device

Details:

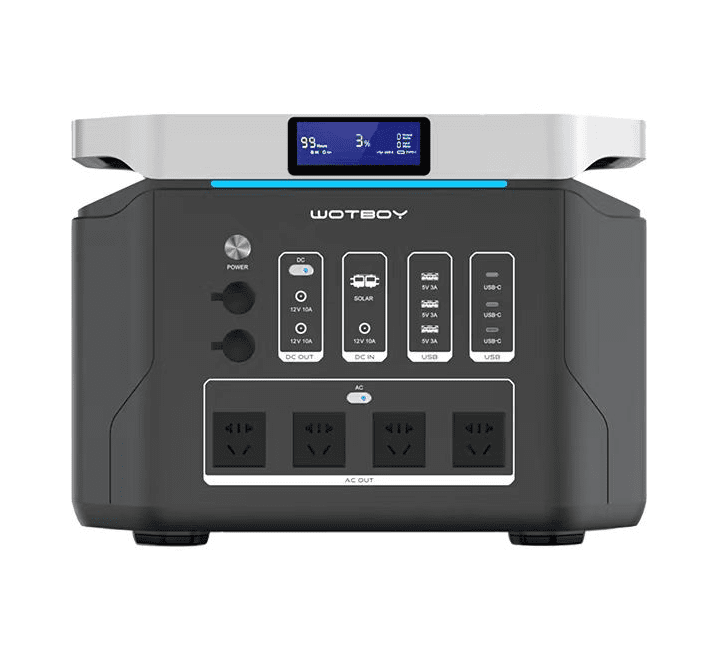

SKU: PSBC3000. Portable outdoor solar power energy storage device 51.2V/15AH (3072Wh)

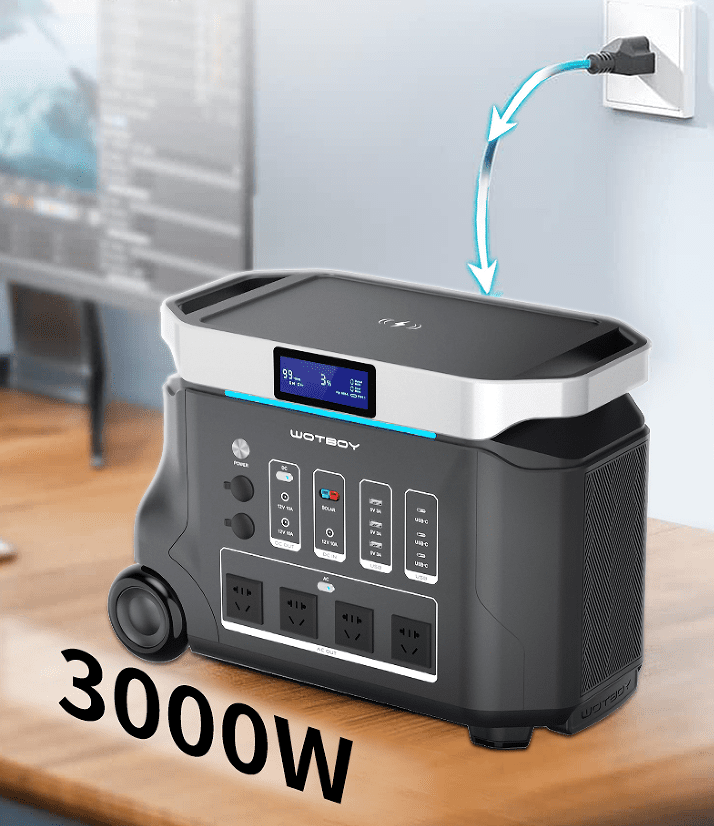

Output power: 3,000 W
Rated capacity: 3,072 wh
Plug type: EU / GM / Swiss / US / Australia / Japan / UK / Customized
Color: black
Output mode: pure sine wave
Battery type: 32140 lithium iron phosphate
Operating temperature: (-20℃ -60℃)
AC output AC: 220V~240V 50hz / 100V~120V 60Hz
Input: 2000W (maximum power of AC port) + 800W (Anderson port)
DC output DC: DC 12V output (cigarette lighter): 12V * 10A
3 * USB-A output: 5V / 3A;9V/2A;12V/1.5A (max. 18W)
1 * USB-A Output: 5V / 2A (software upgrade port)
2 * USB-C Output: 5V / 3A; 9V / 3A; 12V / 3A; 15V / 3A; 20V / 3A (max. 60W)

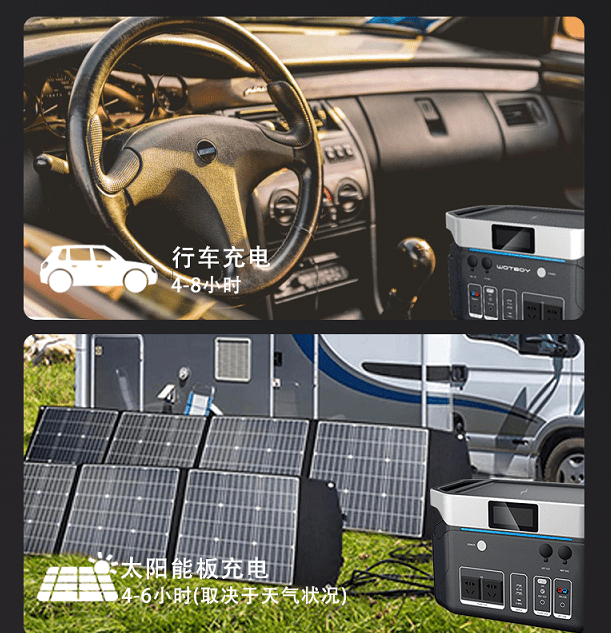

Charging options: solar energy / car / wall wall
Input power: AC adapter, car, solar panels
Certification: CE / FCC / RoHS / PSE
Controller type: PD100W * 2 MPPT
Support equipment: mobile phone / UAV / camera / car refrigerator, etc
Quality guarantee period: 2 years
Describe the characteristics
1. With LED display screen, built-in high-brightness LED light
2. Support for solar charging (12V-60V 800Wmax)

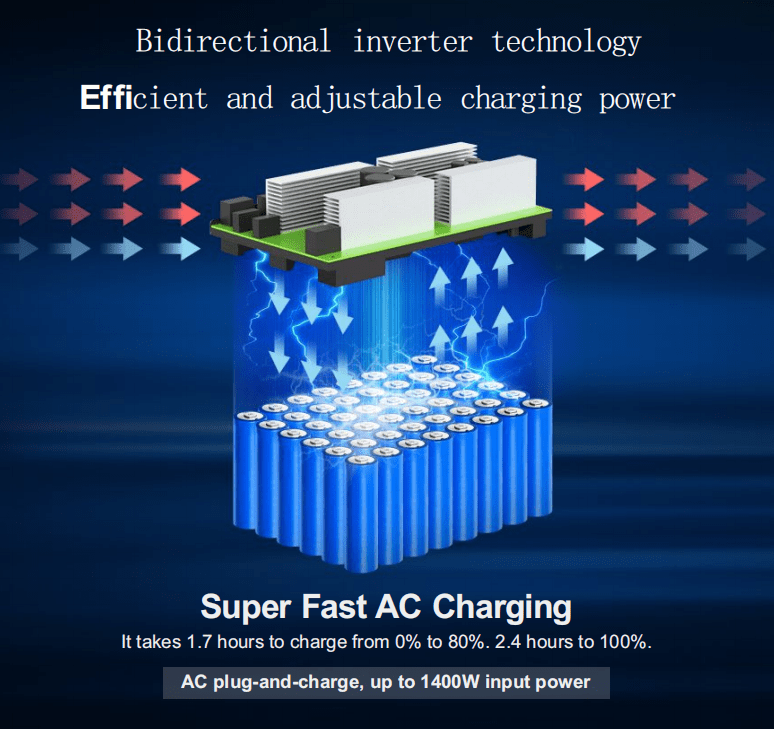

3. Rapid charging. 220V / 800W high-power charging, about 1.3 hours of full charge.
4.400W solar photovoltaic panel charging. According to the midday sun direct sunlight, about 2 hours can be charged with 75% electricity.(The charging time is determined by the light intensity of the sun)
5. Equipped with 6530 DC charging port and Anderson charging port.
(When 6530 ports and Anderson ports are charged at the same time, photovoltaic is the priority.)

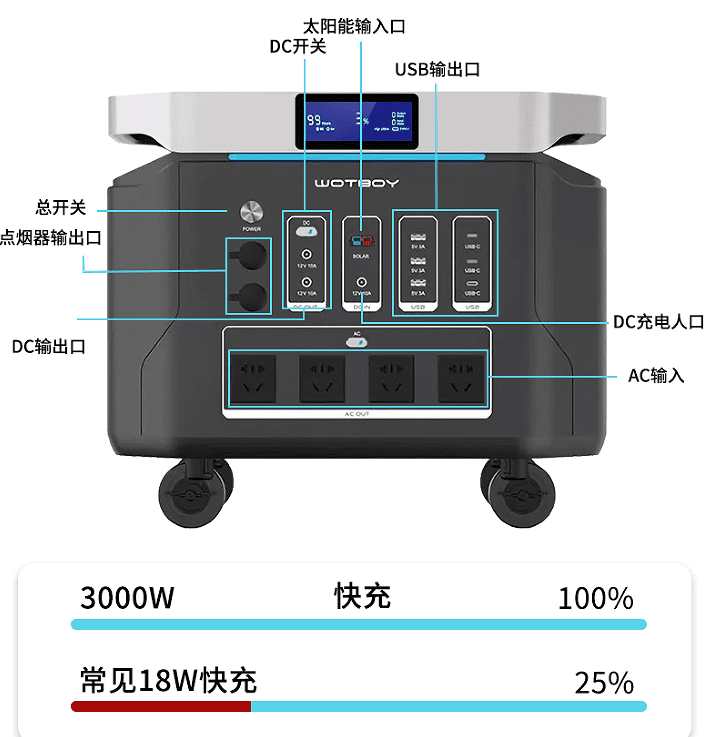

functional description
1. General switch
2. AC AC output button
3, the light button
4. Display screen
5. Car plug
6. DC output switch
7. The DC output port
8. DC input
9, the Type-C output port
10, USB output *2
11. AC AC output socket
12. Lighting
product description

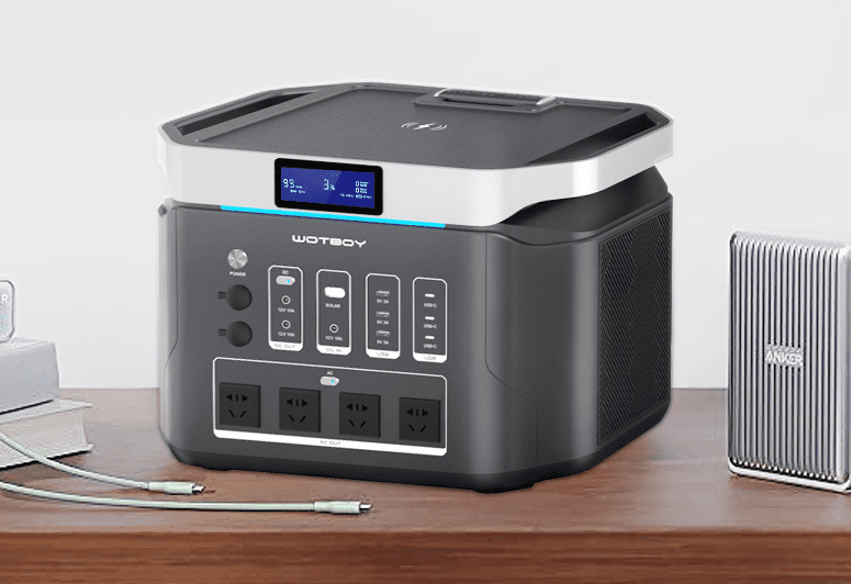

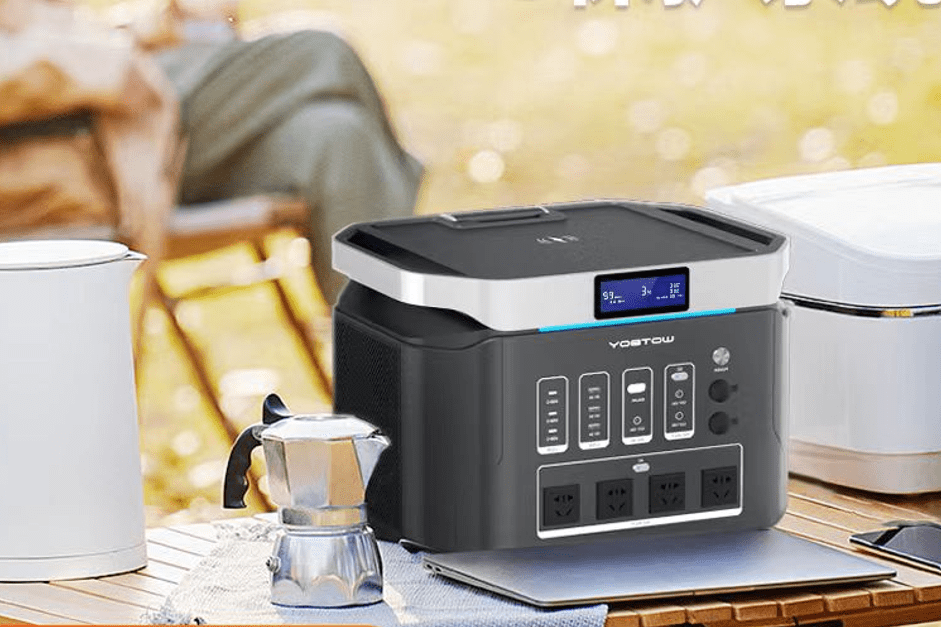

PSBC3000 Is a portable outdoor power supply, with a total storage capacity of 3072 WH, that is, 3.0 degrees of electricity. Suitable for home emergency power failure, emergency rescue, outdoor work, outdoor tourism, camping and other application occasions. The product has different port voltage output such as USB, Type-C, DC6.5 * 3.0, cigarette lighter and AC, and built-in 6W LED lighting and SOS alarm function.
remarks:
1. When the product is discharged in a high temperature environment (60℃), when the system detects that the temperature of the battery cell exceeds 65℃. In order to ensure the safe use of the cell, all output ports close the output, when the cell will be prohibited to discharge.
2. When the product is discharged in a low temperature environment (-10℃), when the system detects that the temperature of the battery cell is lower than-20℃. In order to ensure the safe use of the cell, all output ports close the output, when the cell will be prohibited to discharge.
3. When the product is charged in a high temperature environment (45℃), when the system detects that the temperature of the battery cell exceeds 50℃. In order to ensure the safe use of the cell, the charging port will be closed and charging will be prohibited.
4. When the product is charged in a low temperature environment (0℃), when the system detects that the temperature of the battery cell is lower than 0℃. In order to ensure the safe use of the cell, the charging port will be closed and charging will be prohibited.
Packing specifications

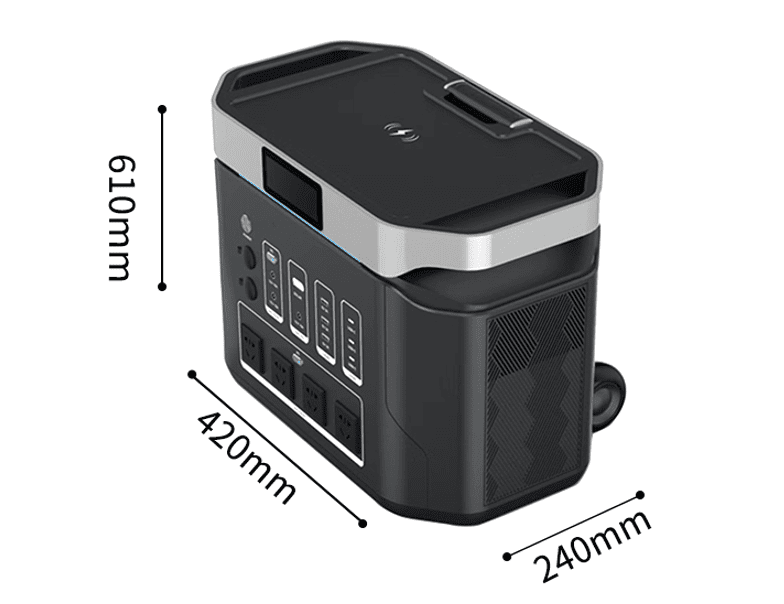

Product size: 509 * 316 * 323mm
Size of the outer box: 609 * 416 * 423mm
Gross weight: 36 Kg

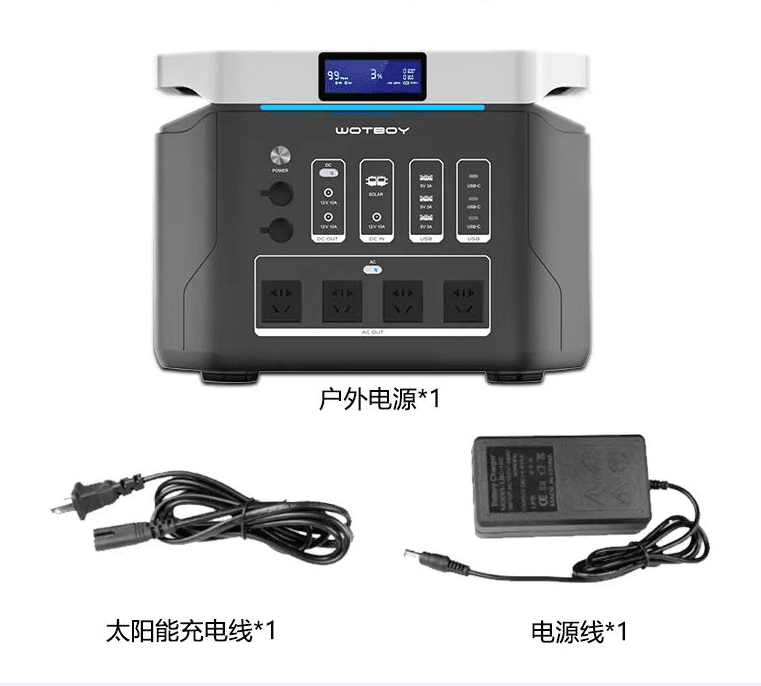

Package quantity: 1set
